Removing The Yamaha XS650 Clutch

   Working on the clutch side of things

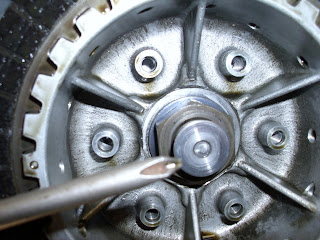

 Six screws with clutch springs to remove.
 There is little spring  pressure on these which is unlike a Harley Set up.

  They came out pretty easy. I negelcted to get a picture of this removed.

           The springs need to be checked for compressed length to see if replacement is needed.

Here is the clutch plunger (or what ever they call it) inside the hub that is activated by the rod from other side of engine. It just slides right on out.

Plunger removed from this hole he'ya

Next, remove the clutch plates and clutch disk's. Carefull, the plates edges can be sharpe
but these seem fine. Although you might as well replace them both if your already in here.
A shot of one each of Clutch disk on the left and plate on the right. There are several of each.
